High speed corrugated panel steel roofing rollformers

  • High speed corrugated panel steel roofing rollformers
  • High speed corrugated panel steel roofing rollformers

High speed corrugated panel steel roofing rollformers

    Payment Type: L/C,T/T,D/P
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
    Packaging: High speed corrugated panel steel roofing rollformers be packged by plastic film full packaged, and loaded into the standard container
    Productivity: 20 sets per month
    Brand: CH
    Transportation: Ocean,Land
    Place of Origin: China, Wuxi
    Supply Ability: 300 sets per year
    Certificate: CE,ISO9001
    HS Code: 8455221000
    Port: Shanghai Port,Tianjin Port

Basic Info

Model No.: AP-Roofing Rollformers

Product Description

High speed corrugated panel steel roofing rollformers

High speed corrugated panel steel roofing rollformers can achieve the speed of 45 meters/min, while normal speed panel rollformers speed is 25 meters/min. Same as the normal speed metal sheet roll forming machine, high speed corrugated panel rollformers including below parts: Manual or hydraulic decoiler, Feeding leveling system, main roll forming machine, Servo motor fly saw tracking cutting system. This servo fly saw cutting system is the main feature characteristic of high speed, it is one type non-stopping cutting system, that is to say, rollformer production working running while cutting, the rollformed working and cutting working is synchronous. While normal speed panel rollformers cutting is stopping cutting, after the rollformed sheet panel length is certain length as setted in PLC, the production stops, to wait the cutting, after finish the cutting process, the panel rollformer begin working roll forming.

High speed roofing sheet rollformer 3

This is the working flow of the High speed corrugated panel steel roofing rollformers .

De-coiler -- Feeding --- Roll forming ---- Cutting-conveyor-Electric horizontal discharge structure –package

High speed roofing sheet rollformer 1

Main Description Specification
Machine model Yx16x76,2x762mm
Feeding width 925mm
Machine speed 30-35m/min(including cutting time)
Sheet thickness 0,3--0,6mm,
Material hardness G550
Controlling Panasonic PLC
7 ton hydraulic de-coiler One set
Roll station 20 stations
Roller material Gcr15 steel after finishing, quenching HRC58-62 °C, surface chrome treatment
High speed roofing sheet rollformer 4

Main machine specifications of the high speed steel roofing rollformers:

Machine model Yx16x76,2x762mm
Feeding width 925mm
Machine speed 30-35m/min(including cutting time)
Sheet thickness 0,3--0,6mm,
Material hardness G550
Controlling Panasonic PLC
7 ton hydraulic de-coiler One set
Roll station 20 stations
Roller material Gcr15 steel after finishing, quenching HRC58-62 °C, surface chrome treatment

Shaft material and size 45# steel,diameter is¢65mm
Main power 5,5kw (servo power, Brand: An chuan)
Cutting method Post cutting system
Hydraulic press 12Mpa
Cutting Blade material Cr12Mov, quenching HRC 58-62℃
Length tolerance 3m±1.5mm
Voltage 415V, 50HZ,3Ph
transmission 1,2 inch chain
The structural Middle plate
Machine color Blue
Machine size Length*width*height 11m*1.8m*1.0m
High speed roofing sheet rollformer 8




High speed roofing sheet rollformer 6

The main features of each component:
Cutting device:
(1) Cutting method:The main machine stops,then the cutting blade cut after measure the length;After finishing the cutting, the main machine body runs, and go on produce.
(2) The cutting blade material:GCR12,after hot treatment quenching HRC58-62℃
(3) Cutting length monitoring:Automatic length cutting
(4) Cut length tolerance:3±1.5mm
Controlling box:Panasonic brand
(1) Voltage:380V,50HZ,3ph
(2) Automatic control length cutting
(3) Automatically count production
(4) The computer controls the length and quantity, and the control device automatically stops cutting to ensure the set production quantity.
(5) Accurately modify the length tolearance
(6) Control method: touch screen and button coexist
Forming machine body:
(1) The structure is simple and the appearance is beautiful. Because the whole machine adopts the steel structure and the whole processing after welding, the structure is simple and reasonable, the storage capacity is strong, and the operation is stable and reliable.
(2) Other important components of the equipment and components are used in well-known domestic enterprises, which effectively guarantee the performance of the equipment.
(3) It adopts fully automatic fixed length forming punching and cutting, precise positioning and positioning, and the shape of the head and tail is beautiful and tidy without deformation.
(4) The equipment is easy to install and debug, suitable for factory production.
(5) The equipment is low in noise and high in work efficiency.

High speed roofing sheet rollformer 7

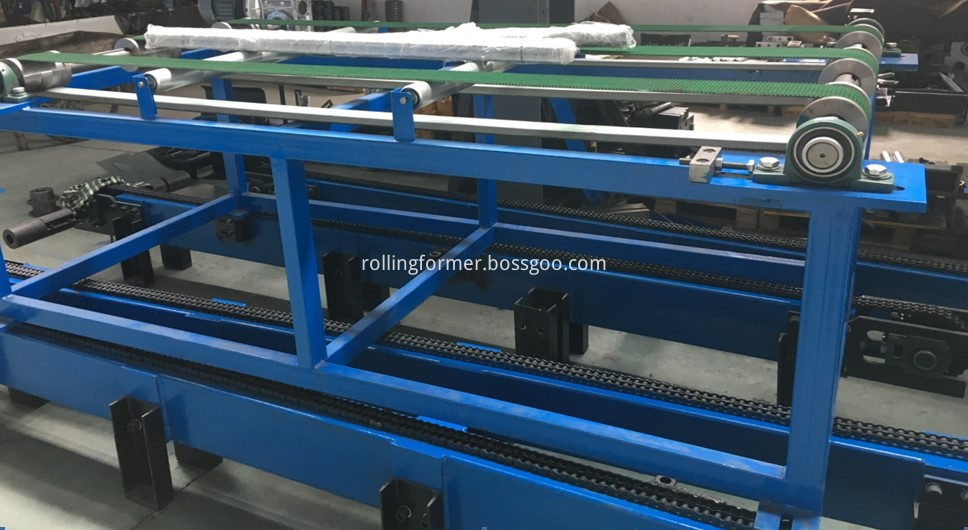

This is the new designing receiving table of the high speed steel roofing rollformers.


High speed roofing sheet rollformer 11

High speed roofing sheet rollformer 10

Our factory is professional make the rollformer machines for the steel roofing, CZ purlines, steel framing strut, suspended ceiling channel, cable tray roll forming machine, shutter door rollformers, door frame rollformers, ridge cap roll forming machines and so on. If you need any machine , pelase feel free contact me, please!

we can design the machines according to your requirements!






WUXI ZHONGTUO ROLL FORMING MACHINERY CO LTD

 Wuxi Zhongtuo Roll forming machinery Co.,Ltd has been specialized in rollforming lines and rollformer for a long history of 35 years.Zhongtuo rollformer equipments are designed and manufactured according to the desired cross-section profile from customers. The rollforming lines are widely used in contract munufacturing, construction, fenestration, HVAC, pallet racking and storage, aerospace, transportation, automative, strut framing channel, cable tray, coredwire and so on.


Zhongtuo rollformers, with hydraulic holes punching, logo punching, inline notching, flying track servo motor cut to length, as well as servo motor fly tracking high speed and rafted options for productivity optimization.


Wuxi Zhongtuo factory exported the machines to almost every contry in the world, United state, the England, France, Italy, Canada, Australia, Switzerland, Belgium, and Argentina, bolivia, Dominica republic, Azerbaijan, Russia, Saudi Arabia, Indian, Philippiness and many other countries in the world.

There are about 100 staffs working in our factory, 20 engineers who are the specialist in these machine designing fields.We are concentrate on the machine quality and customer's need, keeping improving the machine designing and technology to satisfy customer's require. We sincerely hope to establish cooperate with you and be sure to offer high quality rollformers and service for supporting your buiness!
